OpenWrt on Fortinet 5xE devices

This HOWTO is intended for the relatively new users who have some experience with general computing and system administration but are not (yet) comfortable with flashing firmware and need some friendly handholding to get through the process. Some potentially necessary general education will be provided along the way.

Variants of this HOWTO have been tested on the following models:

  • FG-50E
  • FWF-50E-2R
  • FWF-51E

In addition, this HOWTO, with trivial modifications, should work for the following related models:

  • FG-30E
  • FG-51E
  • FG-52E

The modifications needed should be obvious from the context.

Getting the firmware

As of this writing, OpenWrt is available in release (the current release is 24.10.1) for all models listed above. Firmware can be downloaded from this page:

https://downloads.openwrt.org/releases/24.10.1/targets/mvebu/cortexa9/

The hardware

All devices referenced above are built on the Marvell 88F6820 processor. It is a dual-core ARM Cortex-A9 chip running at 1.6 GHz.

FG-30E is the entry-level wired-only device. It has 1 GB RAM, a 128 MB Flash storage device, one WAN port, and four LAN ports in a switch configuration.

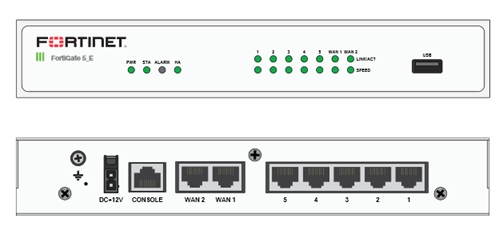

FG-50E (shown on the diagram below) is the next step up. It has 2 GB RAM, a 128 MB Flash storage device, two WAN ports, and five LAN ports in a switch configuration.

FG-50E

The remaining devices are variants of FG-50E that may feature SSD storage and/or wireless hardware (a single N-standard wireless card or dual N- and AC-standard wireless cards). All wireless cards are Qualcomm Atheros. The N-standard cards use the ath9k driver; the AC-standard cards use the ath10k-ct driver with ath10k-firmware-qca988x-ct firmware.

A mildly frustrating feature of these devices is that they have two-pin Molex connectors for power, rather than the more typical barrel connectors. As a result, power supplies can be hard to find or, when found, more expensive. Electrically, however, they are very typical, requiring 12 V / 2 A DC power.

Preparations

To install OpenWrt on one of these devices, you will need:

  • A computer ("administrator's workstation") with software capable of console connection (in terms of software for console connection, we use screen on Linux, but you can use Putty on Linux or Windows and probably many other terminal emulation programs)
  • A console cable (we used the kind that connects the RJ-45 console port on the router to a USB port on the administrator's workstation)
  • An Ethernet cable
  • A TFTP server (we used a separate computer, but you can deploy the TFTP server software on your administrator's workstation)

Begin by setting up the TFTP server. Incidentally, TFTP stands for Trivial File Transfer Protocol. It is a simple, no-frills (and no-security) way for one machine to share files with another. A typical use case for TFTP is network boot, often used by thin clients and, occasionally, by fat servers. We'll use TFTP to boot our router into OpenWrt.

On most Linux flavors, spinning up a TFTP server involves a one-line command to the package manager and a glance at the newly created configuration file. Our designated TFTP server is Ubuntu Server 22.04. To install TFTP server software on Ubuntu, you can elevate yourself to root and run:

apt install tftpd-hpa

When installation is complete, you can check how your new TFTP server is doing:

systemctl status tftpd-hpa

Under Ubuntu, the output of this command contains a line stating Active: active (running), indicating that the TFTP service is ready for use.

Next, take a look at your TFTP configuration file:

cat /etc/default/tftpd-hpa

Find the line that starts with TFTP_DIRECTORY; this is where you will need to put files that you want to be accessible via TFTP. On Ubuntu, it was /srv/tftp. Write it down for future reference.

Next, change your network settings so that the Ethernet port to which the router will be connecting has a fixed IP address, 192.168.1.168. Your router will look for files to use at boot at this IP address (it is possible to change that, and we will discuss it later; it is also possible that this default setting has been changed by a previous user of your router). In Ubuntu, you can change the TFTP server's IP address by editing the Netplan configuration file, which resides at:

/etc/netplan/00-installer-config.yaml

If you have a different OS, check your OS documentation.

Next, change to the TFTP files directory you identified earlier and wrote down for future reference:

cd /srv/tftp

and download the initial boot file (also known as initramfs) for your device. To download current firmware, go to the downloads page (see Getting the firmware above). Find the appropriate initramfs file for your device; it will be one of the following (note model numbers included in file names):

fortinet_fg-30e-initramfs-kernel.bin
fortinet_fg-50e-initramfs-kernel.bin
fortinet_fg-51e-initramfs-kernel.bin
fortinet_fg-52e-initramfs-kernel.bin
fortinet_fwf-50e-2r-initramfs-kernel.bin
fortinet_fwf-51e-initramfs-kernel.bin

Once you found the file you need, download it to your TFTP server. The easiest way to do that is to copy a URL to clipboard and then paste it into the terminal accessing the TFTP server after manually typing wget. It is also a good idea to give the file a shorter name. By default, during the TFTP install, your router will look for a file named image.out, but it is a setting that can be changed (we will discuss changing it later).

For example, if you wanted to get the snapshot initramfs file for the FG-50E and store it under the name image.out, you would do:

wget -O image.out https://downloads.openwrt.org/releases/24.10.1/targets/mvebu/cortexa9/openwrt-24.10.1-mvebu-cortexa9-fortinet_fg-50e-initramfs-kernel.bin

Leave the browser window open; you will need another URL from it fairly soon.

Before booting the router

Make sure you have the following in place:

  • The router is off (there's no power switch on the router, so plug the power supply into the wall, but don't plug it into the router yet)
  • The WAN and LAN ports on the router are not connected to anything
  • The Console port on the router is connected to the administrator's workstation

Next, start a console connection at 9600 bps on the administrator's workstation. In our case, this was done on the command line:

sudo screen /dev/ttyUSB0 9600

Now plug the router in. Be sure to start watching the console output immediately.

The actual installation

Almost immediately after you power up the router, it will output something along these lines:

FortiGate-50E (17:37-01.31.2017)
Ver:05000016
Serial number:
CPU(00): 1600MHz
Total RAM: 2GB
Initializing boot device...
Initializing MAC...
Please wait for OS to boot, or press any key to display configuration menu.

At this point, the router will pause for a few seconds to let you decide whether you want to interrupt the boot process. You do, so press Enter. You will be shown the boot menu that looks like this:

[C]: Configure TFTP parameters.
[R]: Review TFTP parameters.
[T]: Initiate TFTP firmware transfer.
[F]: Format boot device.
[I]: System information.
[B]: Boot with backup firmware and set as default.
[Q]: Quit menu and continue to boot.
[H]: Display this list of options.

Enter C,R,T,F,I,B,Q,or H:

From here, there are at least three ways to go:

  1. You can use option R to see what TFTP settings the router expects, then go back to your TFTP server and adjust its settings to what the router expects, then use option T to boot into OpenWrt, or
  2. You can use option C to adjust the router's TFTP settings to match the settings you already have on your TFTP server, then use option T to boot into OpenWrt, or
  3. You can use option G (for some reason, it doesn't appear on the menu) to configure TFTP boot interactively.

In our opinion, the last option is the most straightforward, so let's use it. Press G on the keyboard (do not follow it by Enter). You will be asked to specify TFTP connection settings one by one. The interaction will look like this:

Please connect TFTP server to Ethernet port 'WAN1'.

Enter TFTP server address [192.168.1.168]:
Enter local address [192.168.1.188]:
Enter firmware image file name [image.out]:

In the example above, the user agreed to all default settings (given in square brackets) by pressing Enter every time. (Note that "local address" refers to the IP address of the router, to be used for TFTP connection only.) Alternatively, the user could have entered different settings on any or all of the lines. Note also that the first thing you have been asked to do is to connect the TFTP server to a specific port on the router (in this example, WAN1), so don't forget to do that.

When you enter (or confirm, as the case may be) all settings, the router will attempt to retrieve the initramfs from the TFTP server in accordance with the settings you provided. If successful, it will ask you how you want to run the firmware:

Connect to tftp server 192.168.1.168 ...

###########
Image Received.
Checking image... OK
Save as Default firmware/Backup firmware/Run image without saving:[D/B/R]?

Choose option R; this will tell the router to boot into OpenWrt but not to save it to storage. You will see the familiar OpenWrt boot sequence. When the boot sequence is complete, press Enter to gain OpenWrt command prompt.

At this point, OpenWrt is running in-memory, so you need to write it to the persistent storage. To do that, you need to perform a sysupgrade. Disconnect your router from the TFTP server and connect one of the router's WAN ports to your upstream device. Test your Internet connection, by, say, pinging Google:

ping -c 3 google.com

If the connection is active, perform sysupgrade. Remember, all the way back in Preparations, we left a browser window open? Go back to that window and find the sysupgrade file for your router; it will be right next to the initramfs file you downloaded earlier. Copy the file's URL to clipboard, then go to your terminal and use it with the sysupgrade command. For example, to sysupgrade OpenWrt on FWF-50E-2R, you would do:

sysupgrade https://downloads.openwrt.org/releases/24.10.1/targets/mvebu/cortexa9/openwrt-24.10.1-mvebu-cortexa9-fortinet_fwf-50e-2r-squashfs-sysupgrade.bin

Sysupgrade will commence. After firmware is downloaded and written to persistent storage, your router will reboot, most likely, into OpenWrt. Why most likely? Because your router has dual firmware layout, so OpenWrt occasionally gets written as backup firmware rather than default firmware. If that happens, the device will boot with stock firmware following sysupgrade. So if you notice that the device is booting with stock firmware, reboot the device, interrupt the boot to gain access to the boot menu, and use option [B]: Boot with backup firmware and set as default; this will tell the router to boot with OpenWrt and set OpenWrt as the default firmware.

Notes on the future

We are aware of a plan to add support for FWF-50E (which is basically FG-50E plus an N-standard Wi-Fi card, or, said another way, FWF-50E-2R minus the AC-standard Wi-Fi card), although we've been told that there is no firm timeline on that.
